| RDB-100A |
Mass range of rotor（kg） | 5-100 |
Max. diameter（mm） | Φ130 |
Distance between left and right pedestal（mm） | 3000 |
Machine bed lengthm (mm) | 4430 |
Range of journal diameter（mm） | Left & right pedestal φ130 center pedestal φ100 |
Balance speed （r/min） | 0-3200 adjustable speed. 4800 for over-speed test only. |
Motor power (KW) | 4 |
Max. initial unbalance （g·cm） | 500 |
Min. sensitivity （g·cm） | 5 |
Measuring plane | 3 |
Dimension（mm） | 5050×930×1134 |
Option | 1.Welding machine –welding the balance piece on the shaft ( type:TN1-63/160 ) |
2. Printer-pringting the readout result. |

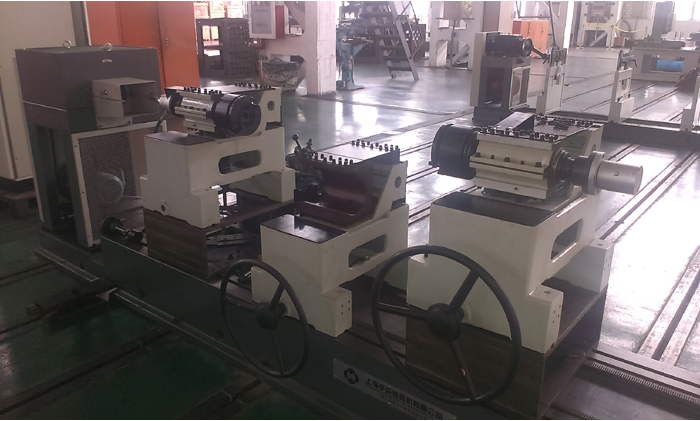

RDB-100A, for two-piece heavy shaft with three pedestals. Right pedestals is locked or unlocked pneumatically. Its unbalance value and phase can be obtained within single run by previously adjustment on the radiuses of two correction planes before starting.

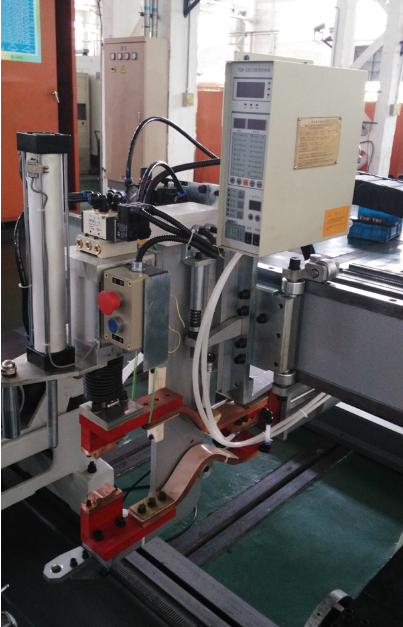

Welding Machine

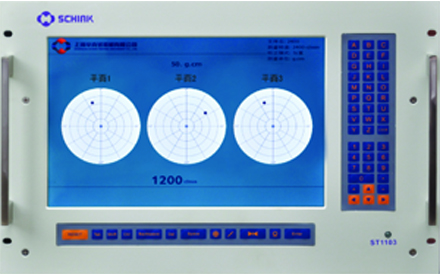

ST1103 measuring unit, a wholly new generation of measuring unit, provides easy and operation with powerful functions. So the wide range of the shaft data can be pre-set, higher precision, stable performance and compensation function, etc.

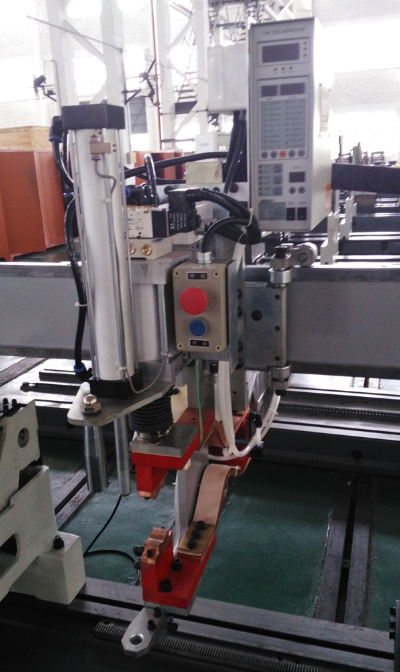

Welding machine which welds balance piece on the tube can be additionally mounted on the balancing machine to enhance the machine efficiency and reduce labour intensity.
